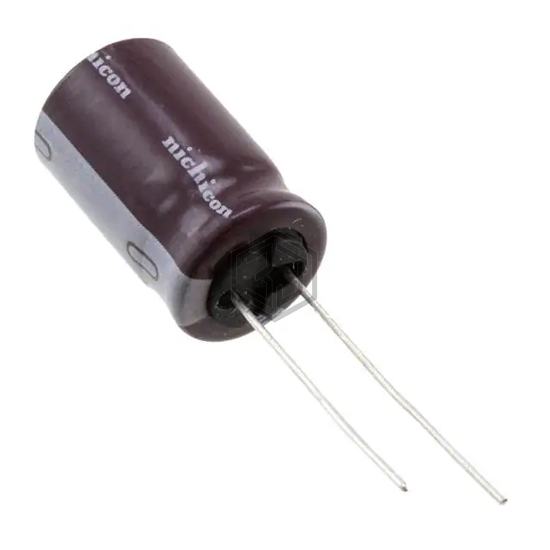

CAP ALUM 33UF 20% 160V RADIAL
UPS2C330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 2,989
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 288 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2C330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 517D336M250DK6AE3 | Vishay Sprague | CAP ALUM 33UF 20% 250V RADIAL | 84% | View |
| UVZ2A330MPD1TA | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| MAL214259339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 72% | View |
| MAL215257339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 68% | View |
| UAS2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 68% | View |
| MAL213669339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 65% | View |
Submit your RFQ for UPS2C330MHD and get a quote within 24 hours.
