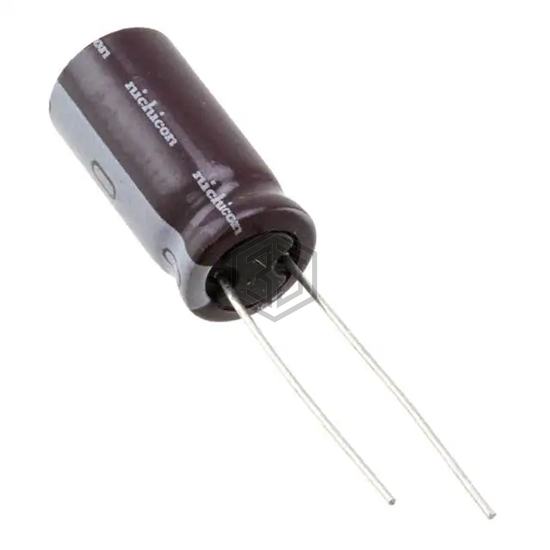

CAP ALUM 22UF 20% 160V RADIAL
UPS2C220MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 8,803
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 208 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2C220MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA1016220M160B | KYOCERA AVX | CAP ALUM 160V POLAR | 97% | View |
| UPS2D220MPD1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 90% | View |
| RJA220M2ABK-0811S | Surge | CAP ALUM 100V POLAR | 77% | View |
| EEU-FC1J220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 71% | View |
| MAL211829229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V AXIAL | 69% | View |
| ESH226M063AE3AA | KEMET | CAP ALUM RAD 105C | 67% | View |
Submit your RFQ for UPS2C220MPD and get a quote within 24 hours.
