CAP ALUM 680UF 20% 100V RADIAL

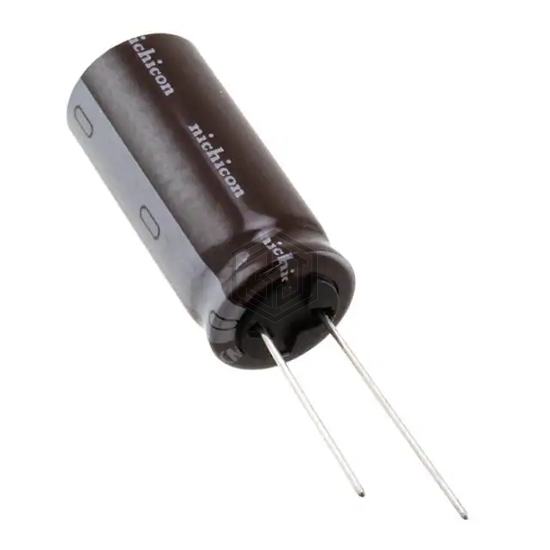

UPS2A681MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.001 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.41 A @ 100 kHz |
| Impedance | 64 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPS2A681MHD and get a quote within 24 hours.
