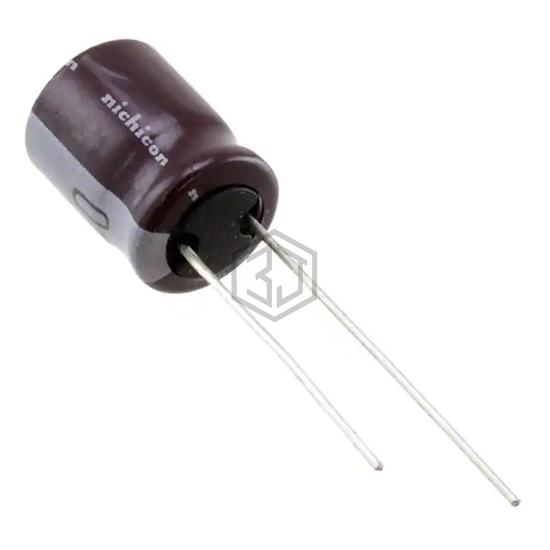

CAP ALUM 33UF 20% 100V RADIAL
UPS2A330MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,157
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 320 mA @ 100 kHz |
| Impedance | 460 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2A330MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A330LB | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 76% | View |
| UPJ2A330MPD6TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 74% | View |
| UEP2A330MHD1TO | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 74% | View |
| UBX1K330MPL | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 60% | View |
| UBX1K330MPL1TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 60% | View |
| EEU-FC1J330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 51% | View |
