CAP ALUM 680UF 20% 63V RADIAL

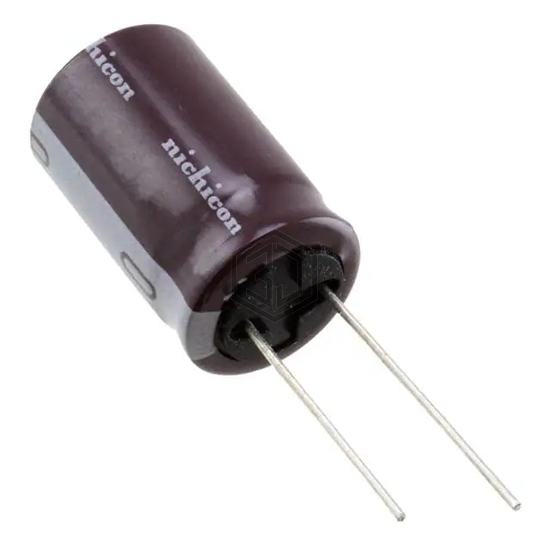

UPS1J681MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,336
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 923 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | 58 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1J681MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41866C8687M004 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 88% | View |
| UPW2A681MHD | Nichicon | CAP ALUM 680UF 20% 100V RADIAL | 82% | View |
| MAL224698685E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 80% | View |
| UBX1H681MHL1TN | Nichicon | CAP ALUM 680UF 20% 50V RADIAL | 80% | View |
| RXK681M1CBK-1020S | Surge | CAP ALUM 16V POLAR | 74% | View |
| ELXZ350ETD681MK20S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 73% | View |
Submit your RFQ for UPS1J681MHD and get a quote within 24 hours.
