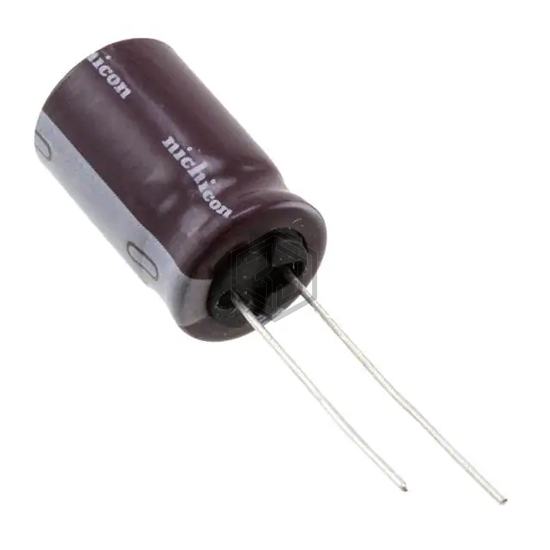

CAP ALUM 330UF 20% 63V RADIAL
UPS1J331MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,814
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 695.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1J331MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D337M063EN4D | Vishay Sprague | CAP ALUM 330UF 20% 63V RADIAL | 100% | View |
| MAL214061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 80% | View |
| 678D337M040DM4D | Vishay Sprague | CAP ALUM 330UF 20% 40V RADIAL | 79% | View |
| 678D337M025DG3DE3 | Vishay Sprague | CAP ALUM 330UF 20% 25V RADIAL | 67% | View |
| B41896C7337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 64% | View |
| URZ1V331MPD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 52% | View |
Submit your RFQ for UPS1J331MHD1TO and get a quote within 24 hours.
