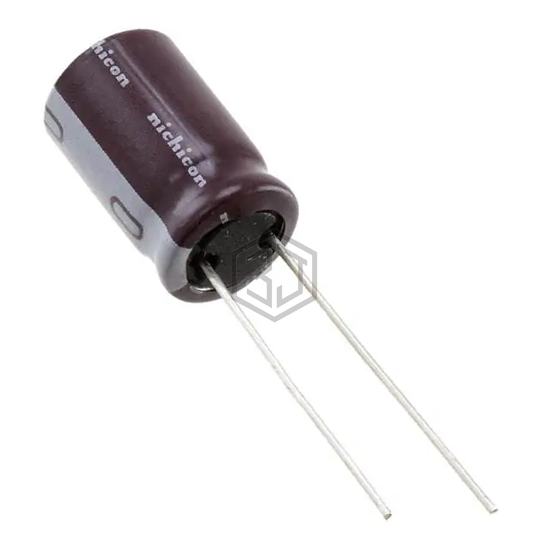

CAP ALUM 150UF 20% 63V RADIAL
UPS1J151MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,288
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 440 mA @ 100 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1J151MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS1J151MPD1TD | Nichicon | CAP ALUM 150UF 20% 63V RADIAL | 100% | View |
| UPW1J151MPH | Nichicon | CAP ALUM 150UF 20% 63V RADIAL | 75% | View |
| UPM1C151MED | Nichicon | CAP ALUM 150UF 20% 16V RADIAL | 74% | View |
| UPW1C151MEH | Nichicon | CAP ALUM 150UF 20% 16V RADIAL | 70% | View |
| UPW0J151MEH | Nichicon | CAP ALUM 150UF 20% 6.3V RADIAL | 70% | View |
| B41890A7157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 35V RADIAL | 50% | View |
