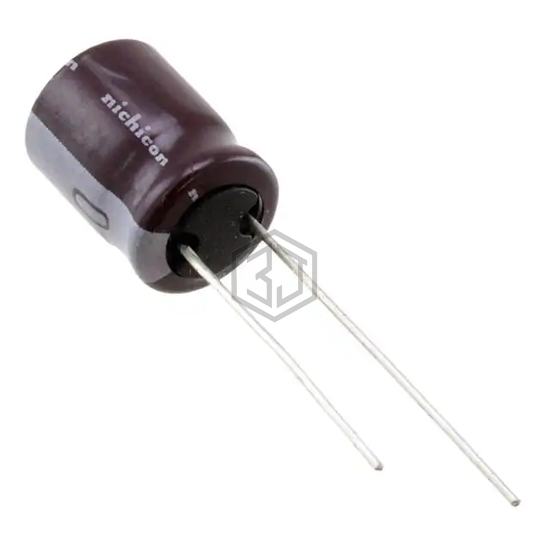

CAP ALUM 150UF 20% 50V RADIAL
UPS1H151MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,501
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 245 mA @ 120 Hz |
| Ripple Current @ High Frequency | 490 mA @ 100 kHz |
| Impedance | 260 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1H151MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ630ETC151MH20D | United Chemi-Con | CAP ALUM 150UF 20% 63V RADIAL | 82% | View |
| 678D157M035CD4D | Vishay Sprague | CAP ALUM 150UF 20% 35V RADIAL | 77% | View |
| MAL212360151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 35V AXIAL | 70% | View |
| MAL211948151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 63V AXIAL | 64% | View |
| UPJ1H151MPD1TD | Nichicon | CAP ALUM 150UF 20% 50V RADIAL | 63% | View |
| UPM1H151MHD6TO | Nichicon | CAP ALUM 150UF 20% 50V RADIAL | 63% | View |
