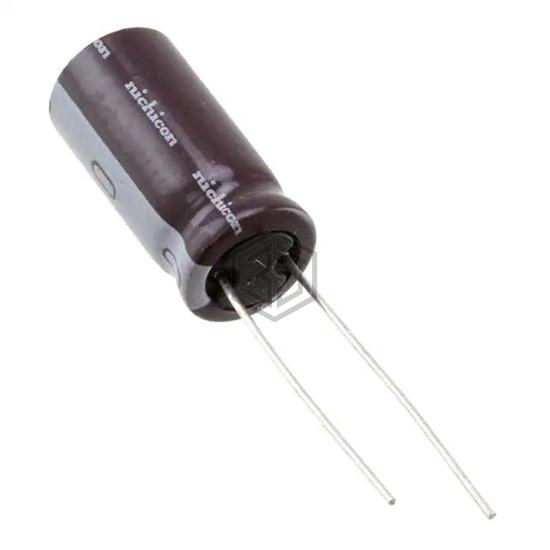

CAP ALUM 1000UF 20% 16V RADIAL
UPS1C102MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,799
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 870 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1C102MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 84% | View |
| UPA1A102MPD3TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 72% | View |
| MAL214035102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 64% | View |
| 517D108M063EN6AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 63V RADIAL | 64% | View |
| EKMG100ELL102MJC5S | United Chemi-Con | CAP ALUM 1000UF 20% 10V RADIAL | 62% | View |
| RXW102M1EBK-1320S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 54% | View |
Submit your RFQ for UPS1C102MPD and get a quote within 24 hours.
