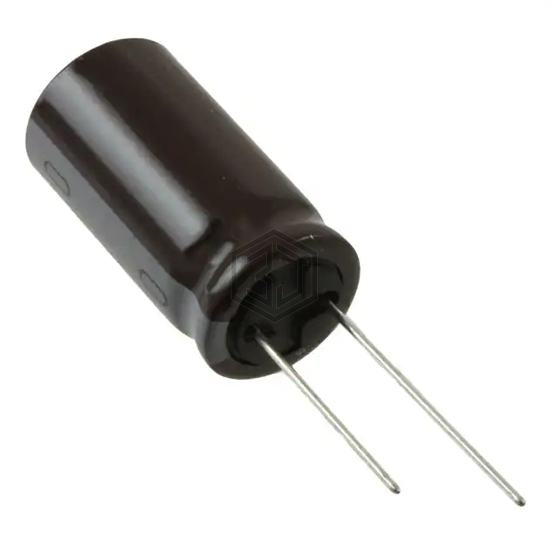

CAP ALUM 6800UF 20% 10V RADIAL
UPS1A682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 167
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.045 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.35 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1A682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213694685E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 91% | View |
| UKT1A682MHD | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 87% | View |
| RXW682M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 87% | View |
| EEU-FC0J682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 80% | View |
| EKMG250ELL682MMP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 77% | View |
| 25PX6800MEFC16X35.5 | Rubycon | CAP ALUM 6800UF 20% 25V RADIAL | 76% | View |
