CAP ALUM 2200UF 20% 10V RADIAL

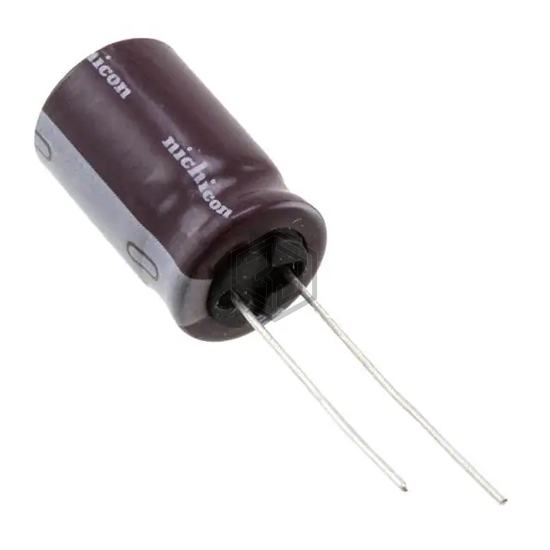

UPS1A222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,249
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.088 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS1A222MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211914222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 10V AXIAL | 84% | View |
| UBW1A222MHD | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 81% | View |
| ELXV6R3ETD222MJ30S | United Chemi-Con | CAP ALUM 2200UF 20% 6.3V RADIAL | 77% | View |
| MAL215035222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 65% | View |
| MAL214033222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 6.3V RADIAL | 61% | View |
| 678D228M016ER3D | Vishay Sprague | CAP ALUM 2200UF 20% 16V RADIAL | 52% | View |
Submit your RFQ for UPS1A222MHD and get a quote within 24 hours.
