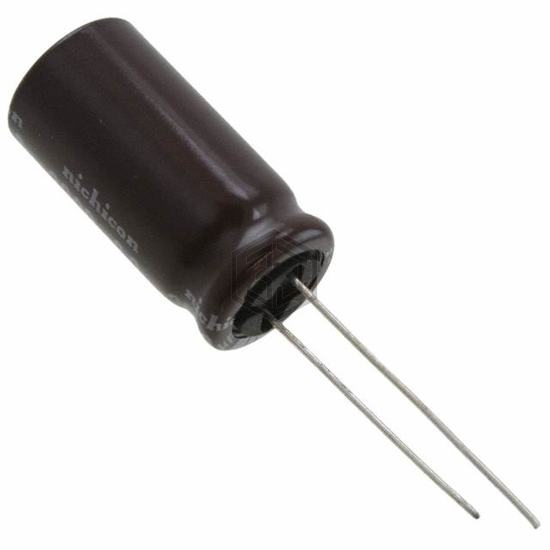

CAP ALUM 4.7UF 20% 450V RADIAL
UPM2W4R7MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,069
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 88 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2W4R7MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA10164R7M450K | KYOCERA AVX | CAP ALUM 4.7UF 20% 450V RADIAL | 97% | View |
| REA10134R7M400K | KYOCERA AVX | CAP ALUM 4.7UF 20% 400V RADIAL | 93% | View |
| 400BXC4.7MEFC10X16 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 88% | View |
| EKMG401ELL4R7MJ16S | United Chemi-Con | CAP ALUM 4.7UF 20% 400V RADIAL | 86% | View |
| B43866A4475M002 | EPCOS - TDK Electronics | CAP ALUM 350V POLAR | 80% | View |
| EY2A4R7MP20511F6U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 68% | View |
Submit your RFQ for UPM2W4R7MHD and get a quote within 24 hours.
