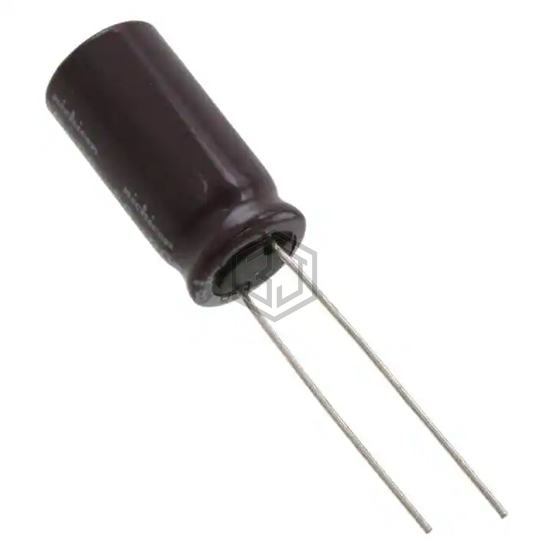

CAP ALUM 3.3UF 20% 350V RADIAL
UPM2V3R3MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,749
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 86.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2V3R3MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400LLE3.3MEFCT78X11.5 | Rubycon | CAP ALUM 3.3UF 20% 400V RADIAL | 90% | View |
| EKMQ401ELL3R3MHB5D | United Chemi-Con | CAP ALUM 3.3UF 20% 400V RADIAL | 84% | View |
| 250LLE3R3MEFCT16.3X11 | Rubycon | CAP ALUM 3.3UF 20% 250V RADIAL | 78% | View |
| 200PX3R3MEFCT16.3X11 | Rubycon | CAP ALUM 3.3UF 20% 200V RADIAL | 64% | View |
| EKMG101ELL3R3ME11D | United Chemi-Con | CAP ALUM 3.3UF 20% 100V RADIAL | 60% | View |
| 30DT335M050BB5 | Vishay Sprague | CAP ALUM 3.3UF 20% 50V AXIAL | 56% | View |
Submit your RFQ for UPM2V3R3MPD and get a quote within 24 hours.
