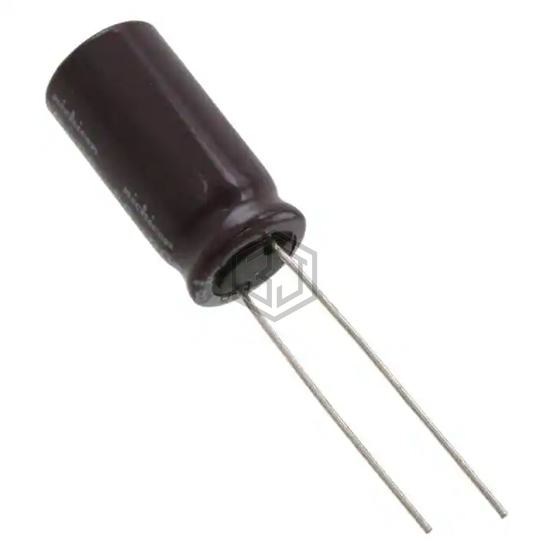

CAP ALUM 3.3UF 20% 400V RADIAL
UPM2G3R3MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,811
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2G3R3MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK3R3M350ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 350V RADIAL | 95% | View |
| MALREKB00PB133ON0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 350V RADIAL | 84% | View |
| 350PX3.3MEFC8X11.5 | Rubycon | CAP ALUM 3.3UF 20% 350V RADIAL | 80% | View |
| EEU-TA1H3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V RADIAL | 65% | View |
| UVY2E3R3MED1TD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 64% | View |
| 517D335M050JA6AE3 | Vishay Sprague | CAP ALUM 3.3UF 20% 50V RADIAL | 51% | View |
