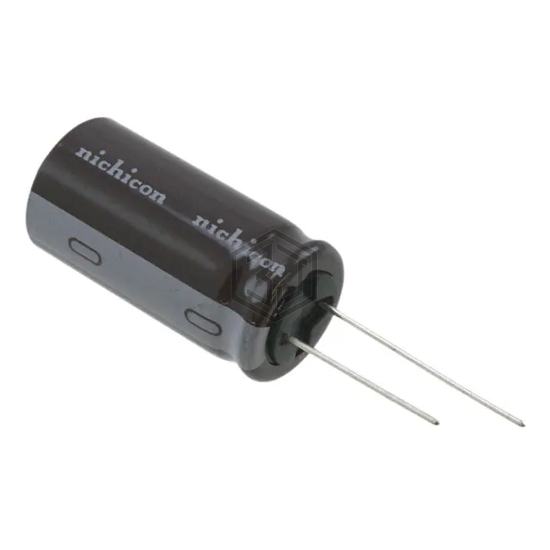

CAP ALUM 33UF 20% 400V RADIAL
UPM2G330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,897
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 272 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2G330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2V330MHH | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 93% | View |
| EKMQ251ELL330MJ20S | United Chemi-Con | CAP ALUM 33UF 20% 250V RADIAL | 79% | View |
| UBT1H330MPD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 74% | View |
| MAL214239339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 65% | View |
| 100ZLH33MEFCT78X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 63% | View |
| 336RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V RADIAL | 56% | View |
