CAP ALUM 1UF 20% 400V RADIAL

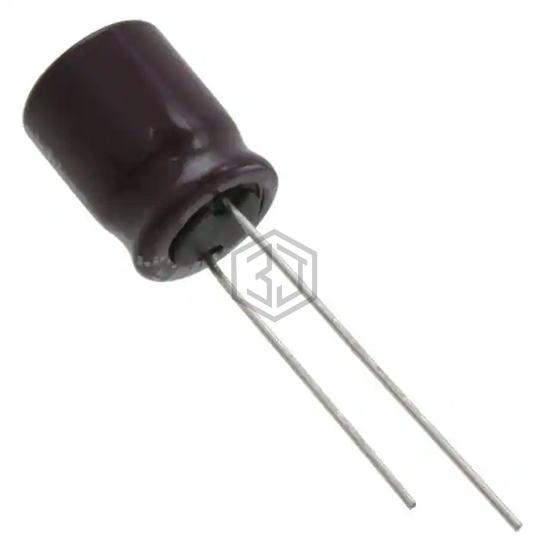

UPM2G010MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,627
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2G010MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2V010MPD | Nichicon | CAP ALUM 1UF 20% 350V RADIAL | 96% | View |
| UPW2F010MPD1TA | Nichicon | CAP ALUM 1UF 20% 315V RADIAL | 90% | View |
| MAL214251085E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 350V RADIAL | 87% | View |
| UPS2D010MED | Nichicon | CAP ALUM 1UF 20% 200V RADIAL | 79% | View |
| MAL214272108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 200V RADIAL | 71% | View |
| UTT1H010MDD | Nichicon | CAP ALUM 1UF 20% 50V RADIAL | 53% | View |
