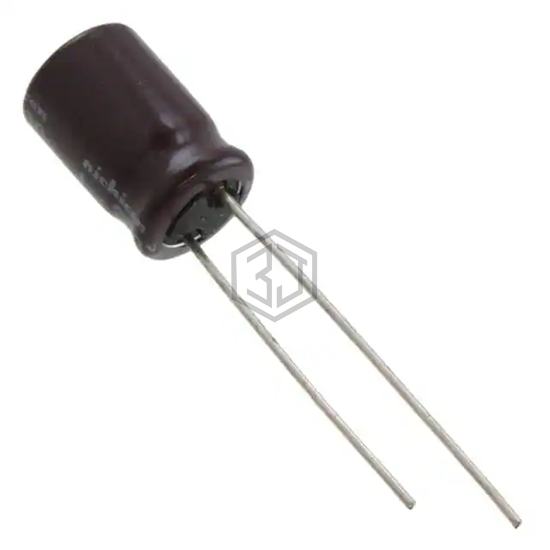

CAP ALUM 1UF 20% 250V RADIAL
UPM2E010MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,021
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2E010MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2D010MPD | Nichicon | CAP ALUM 1UF 20% 200V RADIAL | 93% | View |
| UPS2C010MED1TD | Nichicon | CAP ALUM 1UF 20% 160V RADIAL | 81% | View |
| UVZ2G010MPH | Nichicon | CAP ALUM 1UF 20% 400V RADIAL | 80% | View |
| UBX1V010MPL | Nichicon | CAP ALUM 1UF 20% 35V RADIAL | 74% | View |
| VHT1M50 | NTE Electronics, Inc | CAP ALUM 1UF 20% 50V RADIAL | 56% | View |
| 30D105G025BA2A | Vishay Sprague | CAP ALUM 1UF 25V AXIAL | 56% | View |
Submit your RFQ for UPM2E010MPD1TA and get a quote within 24 hours.
