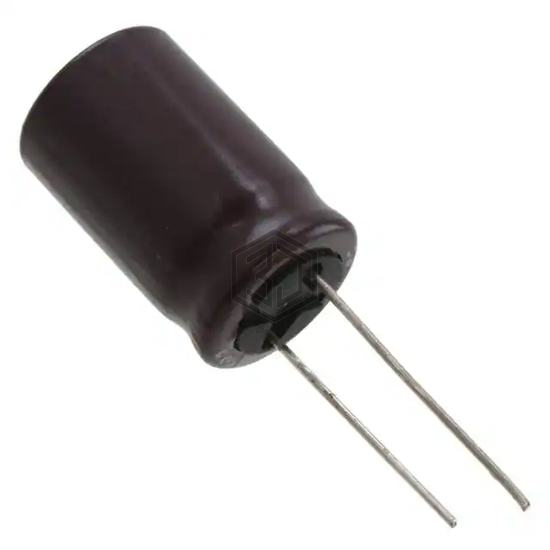

CAP ALUM 47UF 20% 160V RADIAL
UPM2C470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 9,923
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 352 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2C470MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2D470MHD6TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 87% | View |
| UEP2A470MHD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 79% | View |
| EL2C470MPH1212S | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| 678D476M063CD3DE3 | Vishay Sprague | CAP ALUM 47UF 20% 63V RADIAL | 74% | View |
| 250WXA47MEFC18X16 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 72% | View |
| RF1V470MP20511EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
