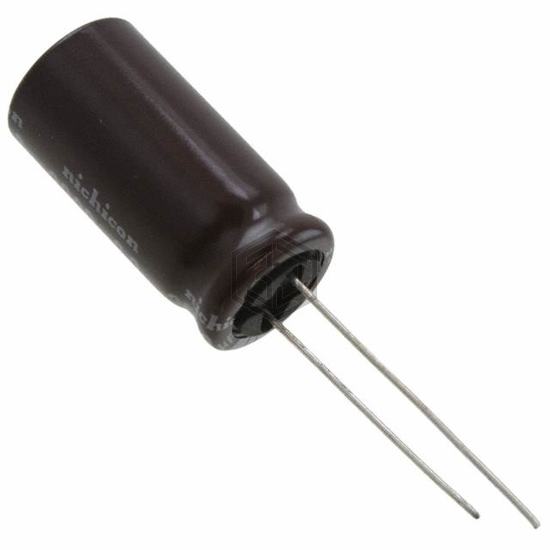

CAP ALUM 33UF 20% 160V RADIAL
UPM2C330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 5,482
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2C330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2C330MHD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 99% | View |
| RUA330M2CBK-1025S | Surge | CAP ALUM 160V POLAR | 97% | View |
| EKMQ251ELL330MJ20S | United Chemi-Con | CAP ALUM 33UF 20% 250V RADIAL | 79% | View |
| URZ2A330MPD1TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 77% | View |
| UBT1H330MPD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 74% | View |
| 336RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V RADIAL | 56% | View |
