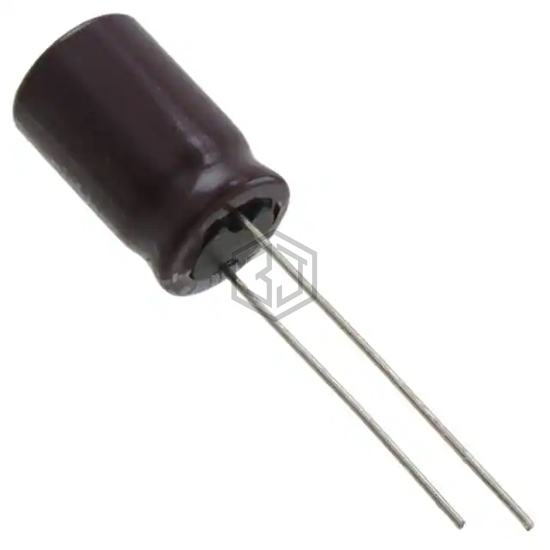

CAP ALUM 39UF 20% 100V RADIAL
UPM2A390MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,719
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 285 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 10 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A390MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A390 | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 98% | View |
| EEU-FC2A390L | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 96% | View |
| 600D406G060DE4 | Vishay Sprague | CAP ALUM 40UF 60V AXIAL | 65% | View |
| 860080573002 | Würth Elektronik | CAP ALUM 39UF 20% 35V RADIAL | 58% | View |
| 610D406G020DE2E3 | Vishay Sprague | CAP ALUM 40UF 20V AXIAL | 54% | View |
| 610D406G020DE2 | Vishay Sprague | CAP ALUM 40UF 20V AXIAL | 54% | View |
