CAP ALUM 270UF 20% 100V RADIAL

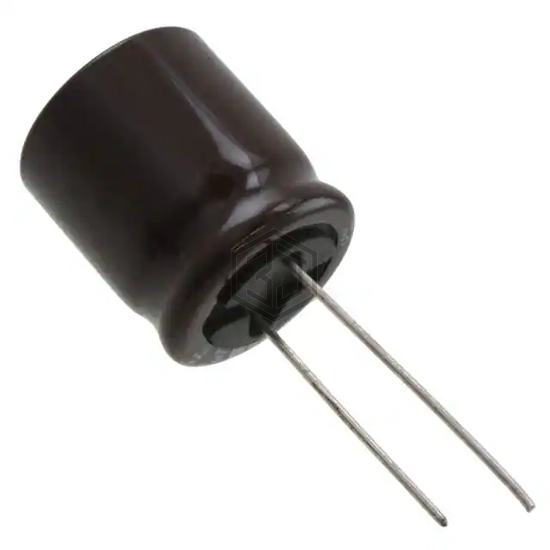

UPM2A271MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.45 A @ 10 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A271MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080778019 | Würth Elektronik | CAP ALUM 270UF 20% 63V RADIAL | 81% | View |
| UPM1J271MHD6 | Nichicon | CAP ALUM 270UF 20% 63V RADIAL | 80% | View |
| ELXY630ELL271MK25S | United Chemi-Con | CAP ALUM 270UF 20% 63V RADIAL | 69% | View |
| EEU-FC1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 64% | View |
| 277KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 35V RADIAL | 61% | View |
| B41858C5277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 25V RADIAL | 53% | View |
