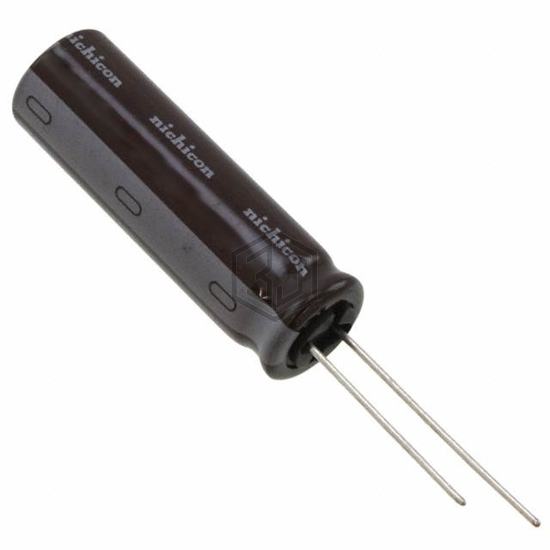

CAP ALUM 270UF 20% 100V RADIAL
UPM2A271MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,960
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.61 A @ 10 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A271MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A271L | Panasonic Electronic Components | CAP ALUM 270UF 20% 100V RADIAL | 83% | View |
| EJ2A271MNN1040 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 82% | View |
| B41890A6277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 50V RADIAL | 70% | View |
| 277KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 63V RADIAL | 67% | View |
| B41789K8277Q001 | EPCOS - TDK Electronics | CAP ALUM 270UF 63V RADIAL | 63% | View |
| EEU-FK1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL TH | 55% | View |
