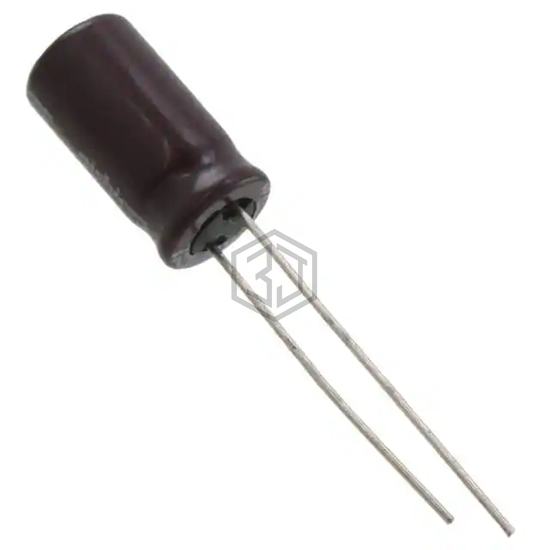

CAP ALUM 27UF 20% 100V RADIAL
UPM2A270MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,148
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 10 kHz |
| Impedance | 470 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A270MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A270MPD1TA | Nichicon | CAP ALUM 27UF 20% 100V RADIAL | 96% | View |
| UPJ2A270MPD6 | Nichicon | CAP ALUM 27UF 20% 100V RADIAL | 95% | View |
| 860080773005 | Würth Elektronik | CAP ALUM 27UF 20% 63V RADIAL | 78% | View |
| 276KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 27UF 20% 100V RADIAL | 76% | View |
| UPJ1J270MED1TA | Nichicon | CAP ALUM 27UF 20% 63V RADIAL | 75% | View |
| B41896C6276M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 66% | View |
Submit your RFQ for UPM2A270MPD and get a quote within 24 hours.
