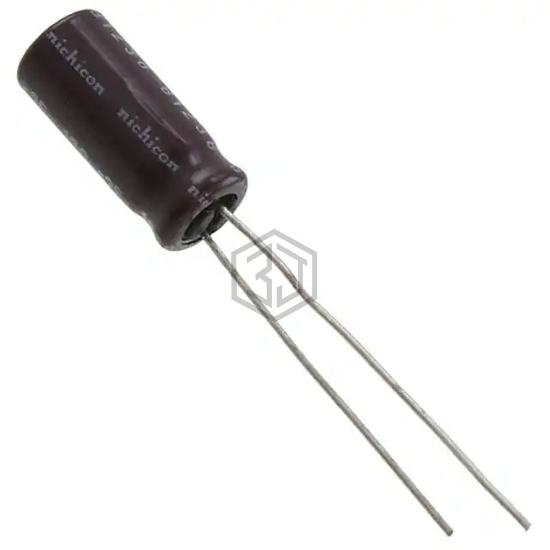

CAP ALUM 18UF 20% 100V RADIAL
UPM2A180MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,604
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 220 mA @ 10 kHz |
| Impedance | 670 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A180MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A180MED | Nichicon | CAP ALUM 18UF 20% 100V RADIAL | 86% | View |
| ELXV101ELL180MF15D | United Chemi-Con | CAP ALUM 18UF 20% 100V RADIAL | 80% | View |
| EEU-FC1J180H | Panasonic Electronic Components | CAP ALUM 18UF 20% 63V RADIAL | 74% | View |
| 186KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 18UF 20% 100V RADIAL | 68% | View |
| ELXV500ELL180MEB5D | United Chemi-Con | CAP ALUM 18UF 20% 50V RADIAL | 59% | View |
| ELXV500ETD180MEB5D | United Chemi-Con | CAP ALUM 18UF 20% 50V RADIAL | 59% | View |
