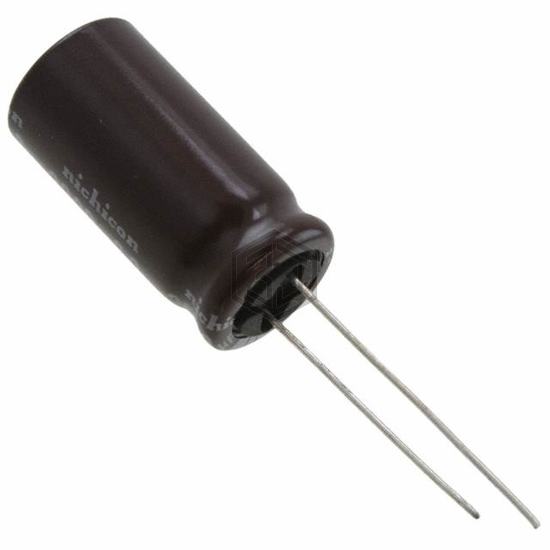

CAP ALUM 150UF 20% 100V RADIAL
UPM2A151MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 10 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A151MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D157F015CG4D | Vishay Sprague | CAP ALUM 150UF 15V RADIAL | 100% | View |
| 672D157F060ET5D | Vishay Sprague | CAP ALUM 150UF 60V RADIAL | 67% | View |
| 672D157H060ET5JE3 | Vishay Sprague | CAP ALUM 150UF 60V RADIAL | 67% | View |
| MAL214668151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V RADIAL | 60% | View |
| EKMG350ELL151MHB5D | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 56% | View |
| 600D157G050DL5 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 56% | View |
Submit your RFQ for UPM2A151MHD1TO and get a quote within 24 hours.
