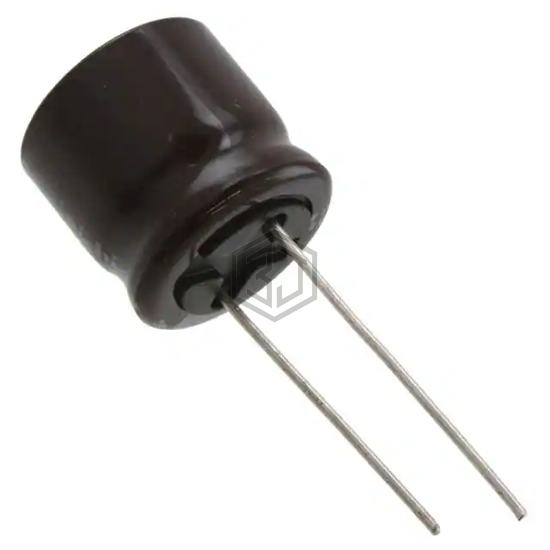

CAP ALUM 120UF 20% 100V RADIAL
UPM2A121MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,936
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 535 mA @ 120 Hz |
| Ripple Current @ High Frequency | 793 mA @ 10 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A121MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS111M350AB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 110UF 20% 350V FLATPACK | 67% | View |
| THAS111M350AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 110UF 20% 350V FLATPACK | 67% | View |
| THAS111M250AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 110UF 20% 250V FLATPACK | 67% | View |
| MAL213668121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 63V RADIAL | 59% | View |
| THAS111M400AC0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 110UF 20% 400V FLATPACK | 59% | View |
| 678D127M025CC4D | Vishay Sprague | CAP ALUM 120UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPM2A121MHD6 and get a quote within 24 hours.
