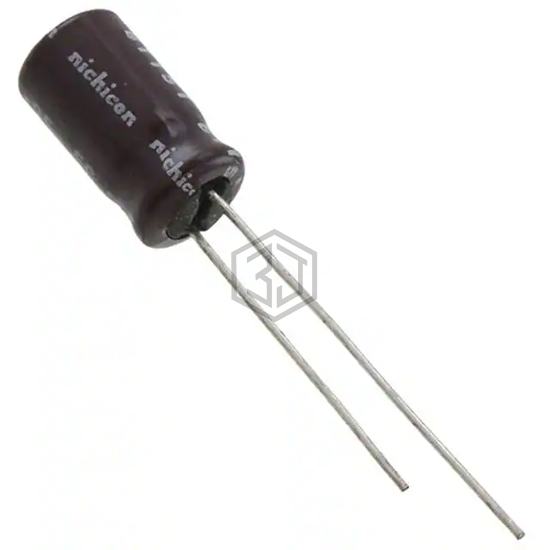

CAP ALUM 12UF 20% 100V RADIAL
UPM2A120MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,202
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 10 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM2A120MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D126F100DD4 | Vishay Sprague | CAP ALUM 12UF 100V AXIAL | 100% | View |
| UPJ2A120MED | Nichicon | CAP ALUM 12UF 20% 100V RADIAL | 89% | View |
| EEA-FC1V120 | Panasonic Electronic Components | CAP ALUM 12UF 20% 35V RADIAL | 76% | View |
| 126KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 12UF 20% 63V RADIAL | 75% | View |
| 600D126F200DG5 | Vishay Sprague | CAP ALUM 12UF 200V AXIAL | 69% | View |
| 600D126F200DG5-HSD | Vishay Sprague | CAP ALUM 12UF 200V AXIAL | 69% | View |
Submit your RFQ for UPM2A120MED1TD and get a quote within 24 hours.
