CAP ALUM 820UF 20% 35V RADIAL

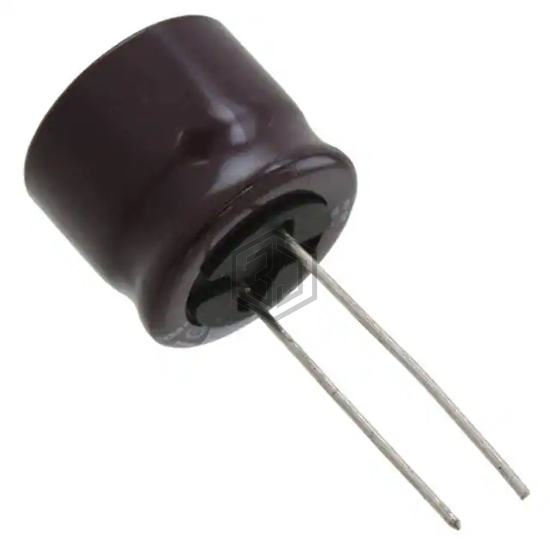

UPM1V821MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,444
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 10 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V821MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E821MPD1TD | Nichicon | CAP ALUM 820UF 20% 25V RADIAL | 84% | View |
| LXZ50VB821M18X20LL | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 82% | View |
| RZW821M1HBK-1620S | Surge | CAP ALUM 50V POLAR | 82% | View |
| RXK821M1JBK-1636S | Surge | CAP ALUM 63V POLAR | 78% | View |
| ELXV800ELL821MM35S | United Chemi-Con | CAP ALUM 820UF 20% 80V RADIAL | 67% | View |
| 860080680023 | Würth Elektronik | CAP ALUM 820UF 20% 50V RADIAL | 64% | View |
Submit your RFQ for UPM1V821MHD6TN and get a quote within 24 hours.
