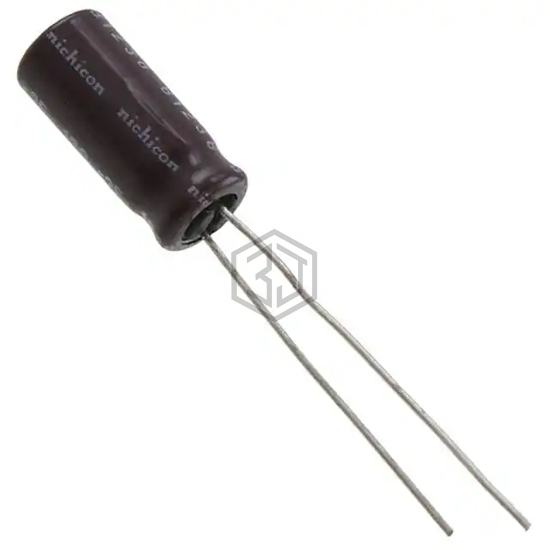

CAP ALUM 68UF 20% 35V RADIAL
UPM1V680MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,697
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 370 mA @ 10 kHz |
| Impedance | 240 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V680MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG350EC3680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 35V RADIAL | 100% | View |
| EEU-FC1J680BJ | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 71% | View |
| MAL211661689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 50V RADIAL | 63% | View |
| ELXV630ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 57% | View |
| 672D686F100EK5D | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 56% | View |
| MAL211928689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 55% | View |
Submit your RFQ for UPM1V680MED and get a quote within 24 hours.
