CAP ALUM 56UF 20% 35V RADIAL

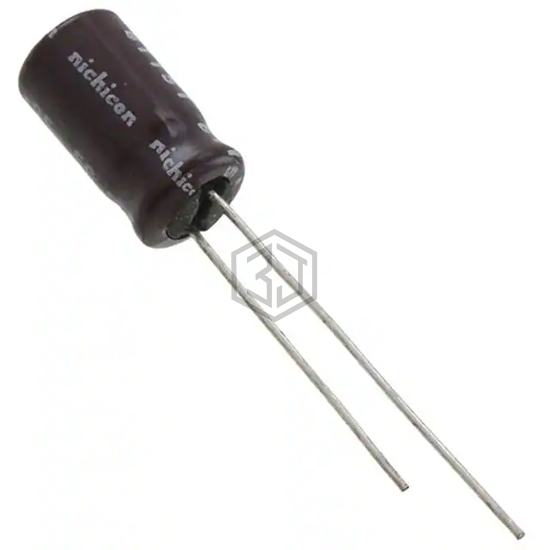

UPM1V560MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,070
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 295 mA @ 10 kHz |
| Impedance | 280 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V560MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V560H | Panasonic Electronic Components | CAP ALUM 56UF 20% 35V RADIAL | 96% | View |
| RZW560M1VBK-0611S | Surge | CAP ALUM 35V POLAR | 93% | View |
| LXZ35VB56RM6X11LL | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 89% | View |
| MALREKC00BB256F00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 35V RADIAL | 85% | View |
| RXW560M1HBK-0615S | Surge | CAP ALUM 50V POLAR | 82% | View |
| 566KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 56UF 20% 100V RADIAL | 71% | View |
Submit your RFQ for UPM1V560MED1TD and get a quote within 24 hours.
