CAP ALUM 22UF 20% 35V RADIAL

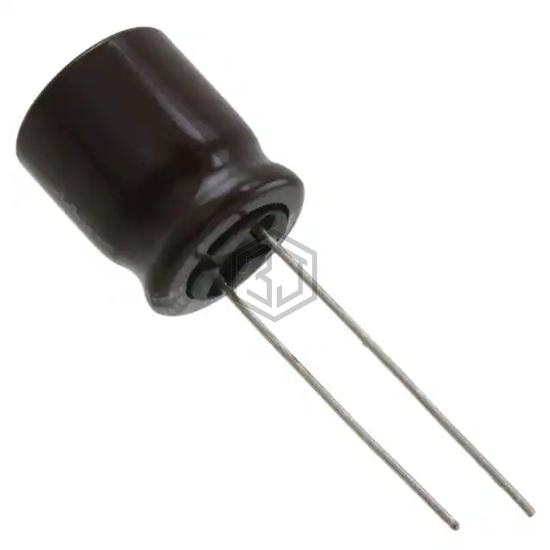

UPM1V220MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,619
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 10 kHz |
| Impedance | 750 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V220MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212367229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 40V AXIAL | 83% | View |
| UPM1H220MED1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 81% | View |
| MAL212360229 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V AXIAL | 80% | View |
| B41866C6226M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 79% | View |
| 25YXA22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 25V RADIAL | 78% | View |
| 517D226M025JA6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 25V RADIAL | 75% | View |
Submit your RFQ for UPM1V220MDD1TA and get a quote within 24 hours.
