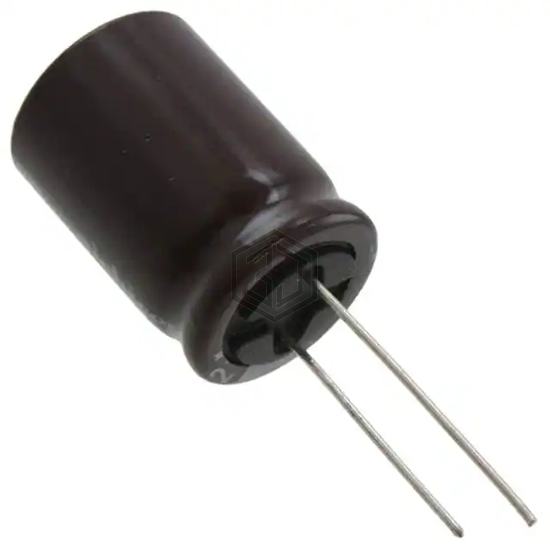

CAP ALUM 1800UF 20% 35V RADIAL
UPM1V182MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.11 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.35 A @ 10 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V182MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1V182MHD6CV | Nichicon | CAP ALUM 35V POLAR | 98% | View |
| UPW1V182MHD6 | Nichicon | CAP ALUM 1800UF 20% 35V RADIAL | 97% | View |
| EEU-FK1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RAD TH | 97% | View |
| B41888D7188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 92% | View |
| B41896C7188M002 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 90% | View |
| B41890A4188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 16V RADIAL | 69% | View |
Submit your RFQ for UPM1V182MHD6 and get a quote within 24 hours.
