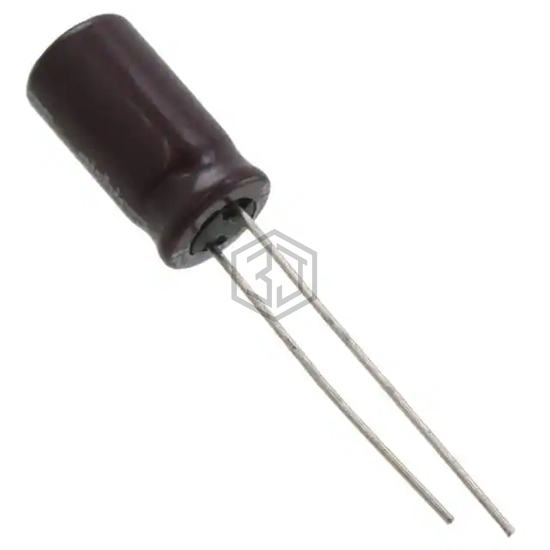

CAP ALUM 150UF 20% 35V RADIAL
UPM1V151MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,458
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 415 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 120 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V151MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D157F015CG4D | Vishay Sprague | CAP ALUM 150UF 15V RADIAL | 100% | View |
| 600D157G050DL5 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 77% | View |
| MAL214668151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V RADIAL | 74% | View |
| MAL215058151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V RADIAL | 69% | View |
| 672D157H060ET5JE3 | Vishay Sprague | CAP ALUM 150UF 60V RADIAL | 65% | View |
| ELXV250ELL151MH12D | United Chemi-Con | CAP ALUM 150UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for UPM1V151MPD1TD and get a quote within 24 hours.
