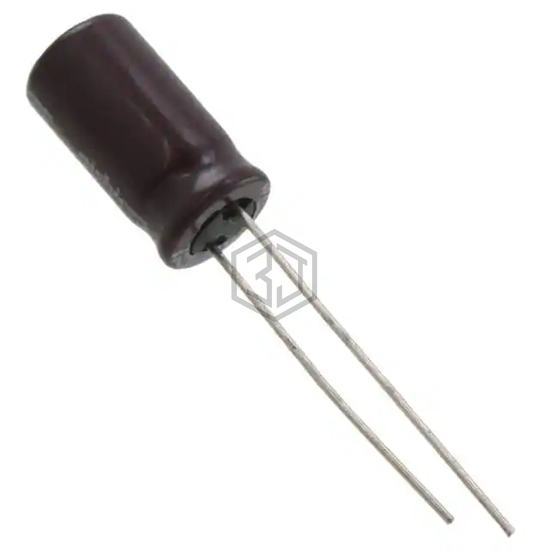

CAP ALUM 120UF 20% 35V RADIAL
UPM1V121MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 496
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 10 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V121MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV350ETD121MJC5S | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 92% | View |
| ELXV500ETD121MJ16S | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 82% | View |
| ELXY350ETC121MH12D | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 78% | View |
| B41858C6127M000 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 50V RADIAL | 74% | View |
| B41858C9127M8 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 100V RADIAL | 60% | View |
| 672D127H075ET5C | Vishay Sprague | CAP ALUM 120UF 75V RADIAL | 56% | View |
