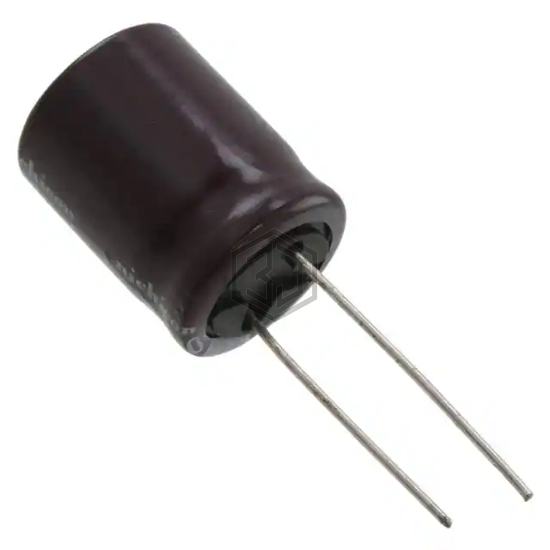

CAP ALUM 1000UF 20% 35V RADIAL
UPM1V102MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,537
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.77 A @ 10 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1V102MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK102M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 35V RADIAL | 100% | View |
| MALREKB05FE410F00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 85% | View |
| B41888A5108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 85% | View |
| ELXZ250ETE102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| EKMG350ETD102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 76% | View |
| B41694A7108Q7 | EPCOS - TDK Electronics | CAP ALUM 1000UF 40V AXIAL | 63% | View |
