CAP ALUM 680UF 20% 80V RADIAL

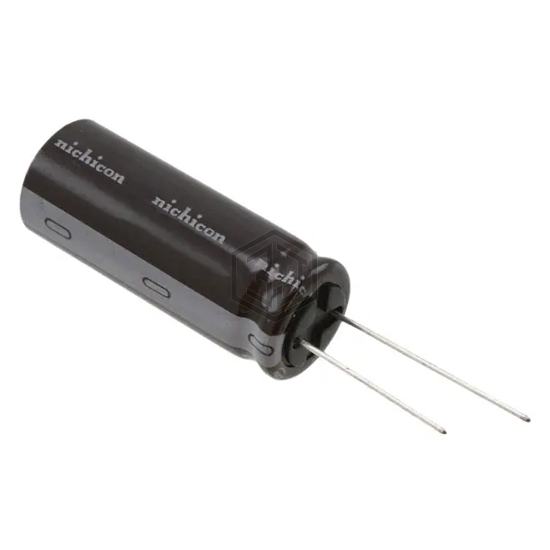

UPM1K681MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.83 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 10 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPM1K681MHD and get a quote within 24 hours.
