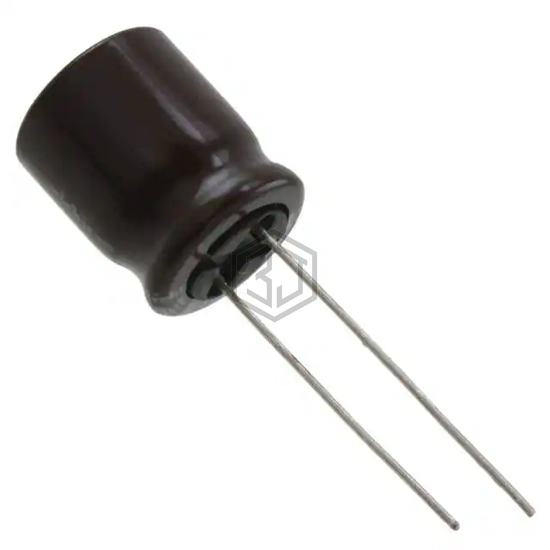

CAP ALUM 68UF 20% 80V RADIAL
UPM1K680MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,994
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 325 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 310 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K680MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D686F100EK5D | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 86% | View |
| EEU-FC1J680BJ | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 85% | View |
| B41888C8686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 63V RADIAL | 85% | View |
| MAL211928689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 72% | View |
| ELXV630ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 61% | View |
| EKMG350EC3680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for UPM1K680MHD6 and get a quote within 24 hours.
