CAP ALUM 39UF 20% 80V RADIAL

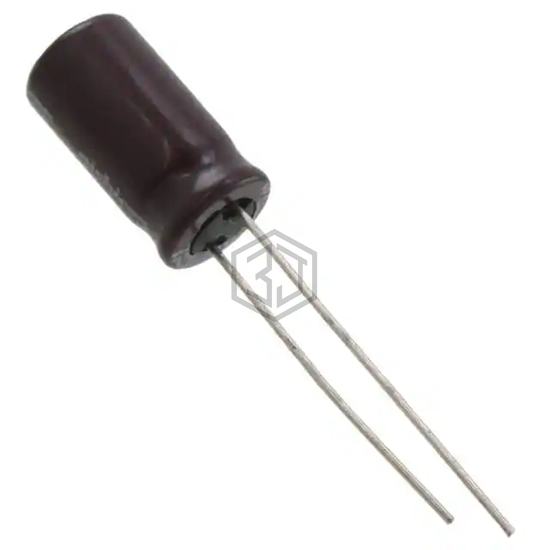

UPM1K390MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 6,550
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 10 kHz |
| Impedance | 460 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K390MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1K390MPD | Nichicon | CAP ALUM 39UF 20% 80V RADIAL | 100% | View |
| RXJ390M1JBK-0811S | Surge | CAP ALUM 63V POLAR | 91% | View |
| 396KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 39UF 20% 63V RADIAL | 83% | View |
| EEU-FC1H390 | Panasonic Electronic Components | CAP ALUM 39UF 20% 50V RADIAL | 81% | View |
| EEU-FC2A390LB | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 70% | View |
| 600D396F200DX5 | Vishay Sprague | CAP ALUM 39UF 200V AXIAL | 56% | View |
