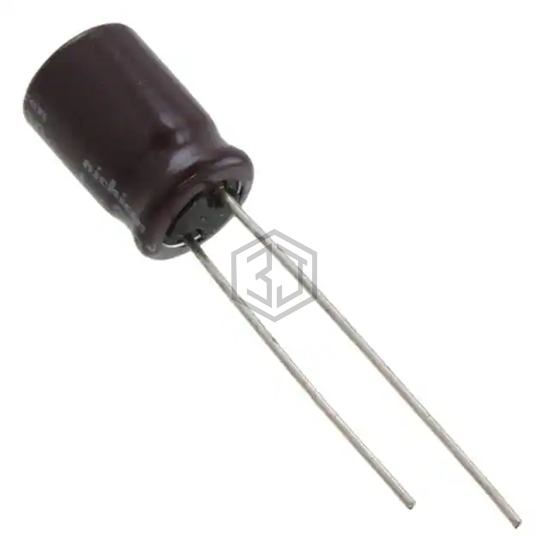

CAP ALUM 33UF 20% 80V RADIAL
UPM1K330MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,752
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 275 mA @ 10 kHz |
| Impedance | 530 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K330MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D336H100DM5J | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 86% | View |
| 672D336H100DM5C | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 86% | View |
| 600D336F150DL4 | Vishay Sprague | CAP ALUM 33UF 150V AXIAL | 74% | View |
| B41042A336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 80V RADIAL | 73% | View |
| UPJ1V330MED1TD | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 69% | View |
| EH2A330MP51009F4U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 62% | View |
Submit your RFQ for UPM1K330MPD and get a quote within 24 hours.
