CAP ALUM 270UF 20% 80V RADIAL

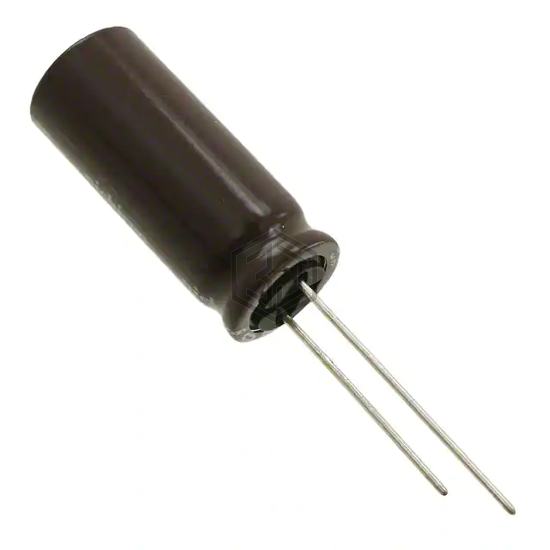

UPM1K271MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 219
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 945 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.27 A @ 10 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K271MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C9277M003 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 100V RADIAL | 89% | View |
| RXK271M1JBK-1325S | Surge | CAP ALUM 63V POLAR | 85% | View |
| UPJ2A271MHD1CM | Nichicon | CAP ALUM 100V POLAR | 85% | View |
| B41888C8277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 63V RADIAL | 73% | View |
| EEU-FC1V271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 66% | View |
| UPA1V271MPD6 | Nichicon | CAP ALUM 270UF 20% 35V RADIAL | 59% | View |
