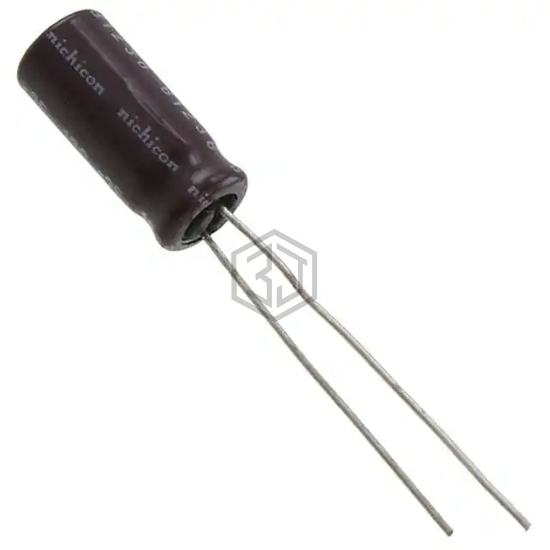

CAP ALUM 22UF 20% 80V RADIAL
UPM1K220MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 3,219
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Impedance | 770 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K220MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D226F075DD5 | Vishay Sprague | CAP ALUM 22UF 75V AXIAL | 96% | View |
| UPJ1J220MED1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 87% | View |
| MAL211638229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 83% | View |
| LXY35VB22RM6X5LL | United Chemi-Con | CAP ALUM 22UF 20% 35V RADIAL | 72% | View |
| EEA-GA1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 66% | View |
| MAL214068229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 58% | View |
Submit your RFQ for UPM1K220MED1TD and get a quote within 24 hours.
