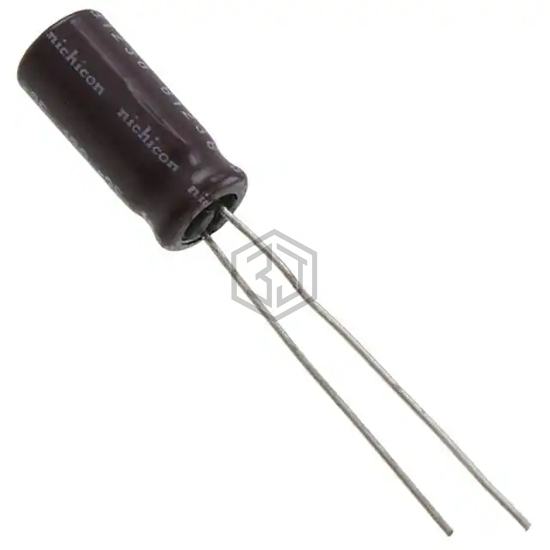

CAP ALUM 22UF 20% 80V RADIAL
UPM1K220MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,276
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Impedance | 770 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K220MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D226F100DG5 | Vishay Sprague | CAP ALUM 22UF 100V AXIAL | 86% | View |
| RF1H220MRE0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| 672D226F050CD5D | Vishay Sprague | CAP ALUM 22UF 50V RADIAL | 70% | View |
| ECA-1HHG220I | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 69% | View |
| EKMQ500ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 68% | View |
| EKMG250ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 25V RADIAL | 51% | View |
Submit your RFQ for UPM1K220MED and get a quote within 24 hours.
