CAP ALUM 180UF 20% 80V RADIAL

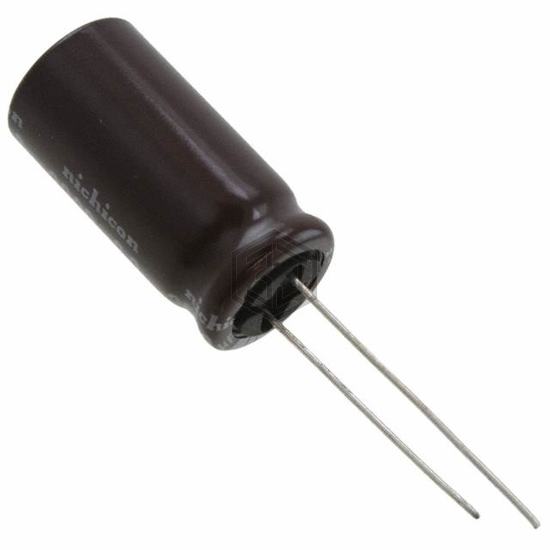

UPM1K181MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 8,888
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 735 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.04 A @ 10 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K181MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J181S | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 89% | View |
| EEU-FC2A181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 100V RADIAL | 89% | View |
| EEU-FC1J181SB | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 89% | View |
| RF1K181MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 86% | View |
| ELXY500ETD181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 67% | View |
| 672D187H040DM3C | Vishay Sprague | CAP ALUM 180UF 40V RADIAL | 56% | View |
Submit your RFQ for UPM1K181MHD and get a quote within 24 hours.
