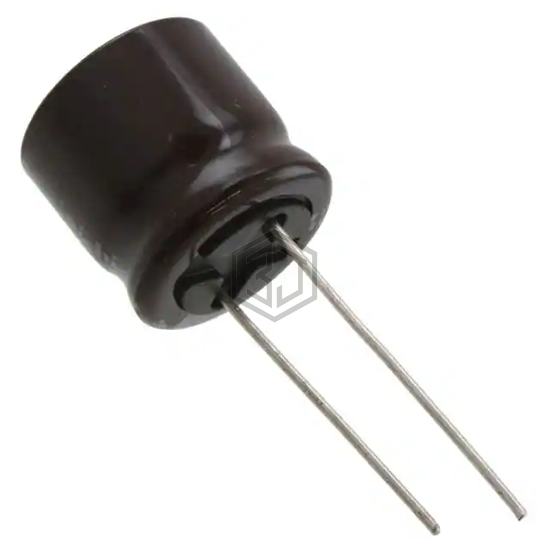

CAP ALUM 120UF 20% 80V RADIAL
UPM1K121MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 5,699
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 445 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 200 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K121MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D127H100ET5J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 86% | View |
| B41888C8127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 63V RADIAL | 81% | View |
| EEU-FC1H121LJ | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 78% | View |
| MAL213631121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 50V RADIAL | 69% | View |
| ELXV500ELL121MH20D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 66% | View |
| EEU-FC1V121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for UPM1K121MHD6 and get a quote within 24 hours.
