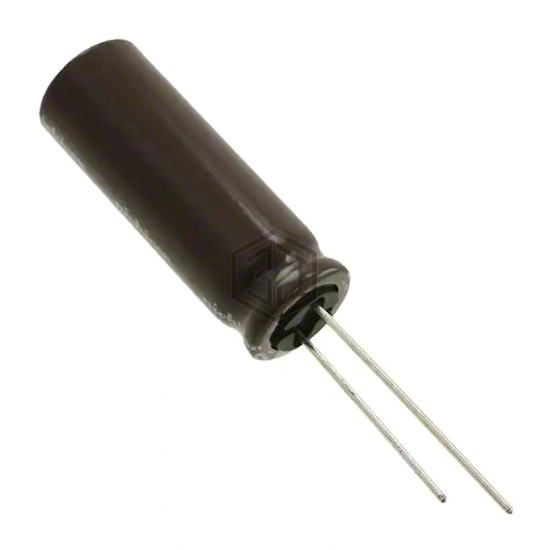

CAP ALUM 470UF 20% 63V RADIAL
UPM1J471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,613
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.78 A @ 10 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1J471MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ630ELL471ML20S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| ELXV630ETS471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 78% | View |
| B41890A7477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 74% | View |
| 678D477M040EK3D | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 69% | View |
| 672D477F025DS5R | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 66% | View |
| EKRG250ELL471MK15S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPM1J471MHD and get a quote within 24 hours.
