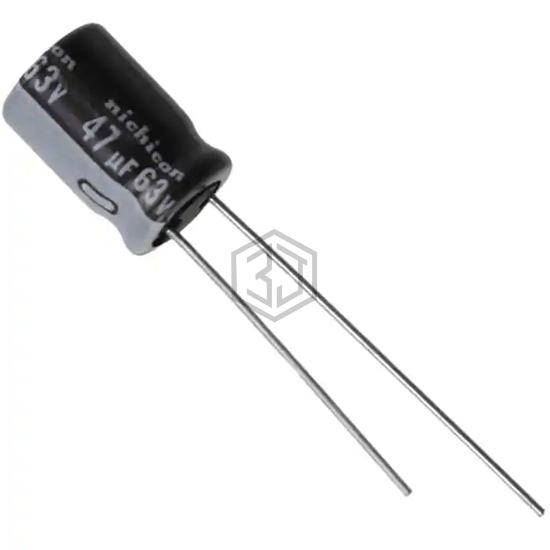

CAP ALUM 47UF 20% 63V RADIAL
UPM1J470MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,399
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 215 mA @ 120 Hz |
| Ripple Current @ High Frequency | 365 mA @ 10 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1J470MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D476M063CC4D | Vishay Sprague | CAP ALUM 47UF 20% 63V RADIAL | 100% | View |
| MALREKC00DC247J00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 100% | View |
| B41896W8476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 63V RADIAL | 99% | View |
| MALREKB05DC247L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V RADIAL | 77% | View |
| UVZ1J470MED1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 76% | View |
| 860080573003 | Würth Elektronik | CAP ALUM 47UF 20% 35V RADIAL | 75% | View |
