CAP ALUM 220UF 20% 63V RADIAL

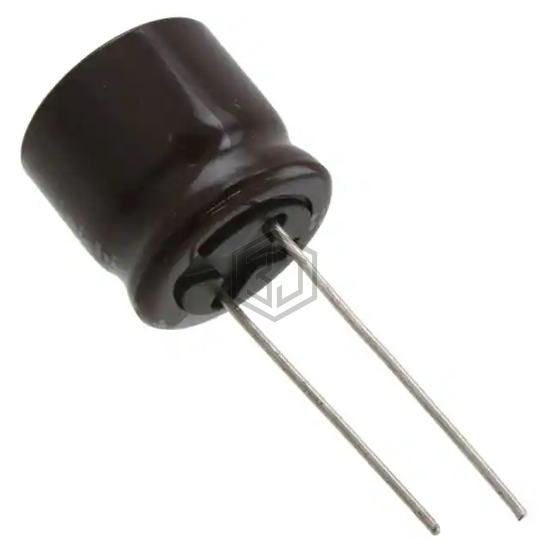

UPM1J221MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 694
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 10 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1J221MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW221M1JBK-1025S | Surge | CAP ALUM 63V POLAR | 91% | View |
| LXY50VB221M10X25LL | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 86% | View |
| B41888C7227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 35V RADIAL | 68% | View |
| RXW221M1VBK-0815S | SURGE | CAP ALUM 220UF 20% 35V RADIAL | 65% | View |
| MAL215090225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 62% | View |
| EJ1V221MP51012 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 50% | View |
Submit your RFQ for UPM1J221MHD6 and get a quote within 24 hours.
