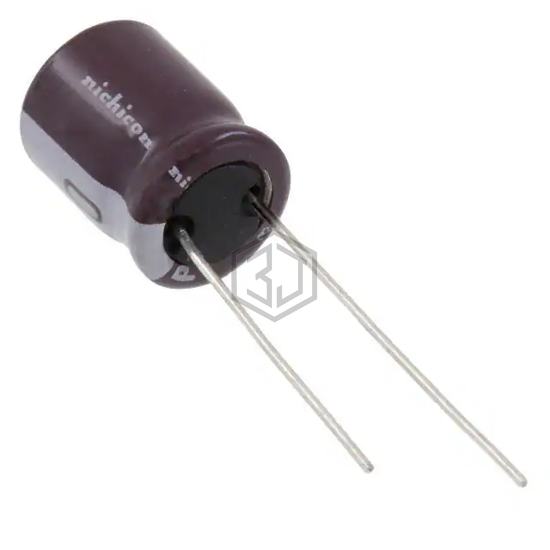

CAP ALUM 82UF 20% 50V RADIAL
UPM1H820MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,136
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H820MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H820MPD1TD | Nichicon | CAP ALUM 82UF 20% 50V RADIAL | 97% | View |
| EEU-FC1H820BJ | Panasonic Electronic Components | CAP ALUM 82UF 20% 50V RADIAL | 94% | View |
| 860080674008 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 91% | View |
| 860160674020 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 83% | View |
| ELXV500ELL820MH15D | United Chemi-Con | CAP ALUM 82UF 20% 50V RADIAL | 81% | View |
| 860160574011 | Würth Elektronik | CAP ALUM 82UF 20% 35V RADIAL | 58% | View |
Submit your RFQ for UPM1H820MPD6TD and get a quote within 24 hours.
