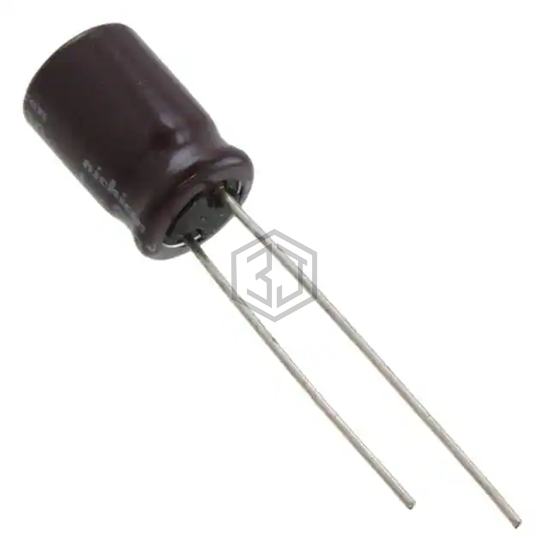

CAP ALUM 68UF 20% 50V RADIAL
UPM1H680MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,003
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 415 mA @ 10 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H680MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H680MPD | Nichicon | CAP ALUM 68UF 20% 50V RADIAL | 100% | View |
| 672D686H060DM5D | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 88% | View |
| 860080775010 | Würth Elektronik | CAP ALUM 68UF 20% 63V RADIAL | 87% | View |
| 686KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 63V RADIAL | 76% | View |
| EKMQ630ETC680MHB5D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 71% | View |
| 672D686H025CD5C | Vishay Sprague | CAP ALUM 68UF 25V RADIAL | 56% | View |
