CAP ALUM 330UF 20% 50V RADIAL

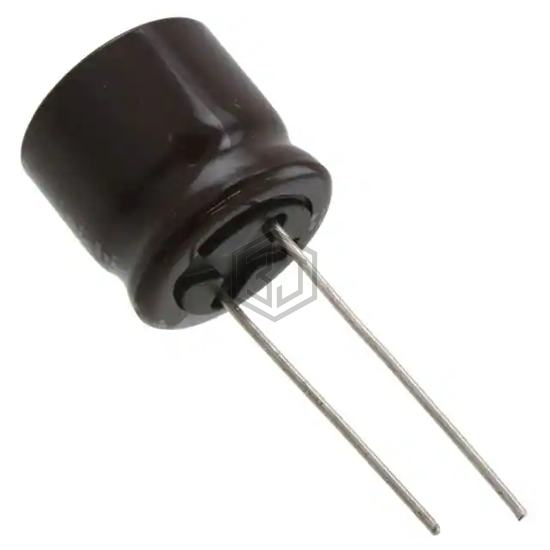

UPM1H331MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,922
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 925 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.21 A @ 10 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1H331MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EJ1V331MP51016F4U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
| MAL215058331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V RADIAL | 73% | View |
| MAL213669331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 72% | View |
| MAL216055331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 65% | View |
| MAL216051331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
| MAL213656331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPM1H331MHD6 and get a quote within 24 hours.
